Edit ONU C-Data

 Important

Please note that the PON port of the OLT must have the Auto and Adaptive modes disabled. If you have any doubts on this matter, you can consult the following manual; Configure PON Port

 Ways to Edit an ONU

It is important to mention that in AdminOLT there are 2 ways to edit the ONU, one at the system level and another at the OLT level, for more information you can read the section What information can I edit of an Authorized ONU in the OLT?, the other one is at the system level, for more information you can read the section What information can I edit of an Authorized ONU in AdminOLT?

What information can I edit of an Authorized ONU in the OLT?

From AdminOLT we can configure:

  • OLT
  • Card
  • Port
  • Serial Number
  • ONU Model
  • Configuration Type
  • CVLAN
  • SVLAN

To be able to edit in the OLT, you can follow the steps in the following section Steps to edit information of an Authorized ONU in the OLT

What information can I edit of an Authorized ONU in AdminOLT?

In AdminOLT we can edit:

  • ONU Name
  • Address
  • Phone
  • Comments
  • Area
  • NAP
  • External Administrative ID
  • Latitude
  • Longitude

To be able to edit information in AdminOLT, you can follow the steps in the following section Steps to edit information of an Authorized ONU in AdminOLT

Steps to edit information of an Authorized ONU in the OLT

To edit the configuration of an Authorized ONU in the OLT, there are 2 ways:

From Authorized ONU List

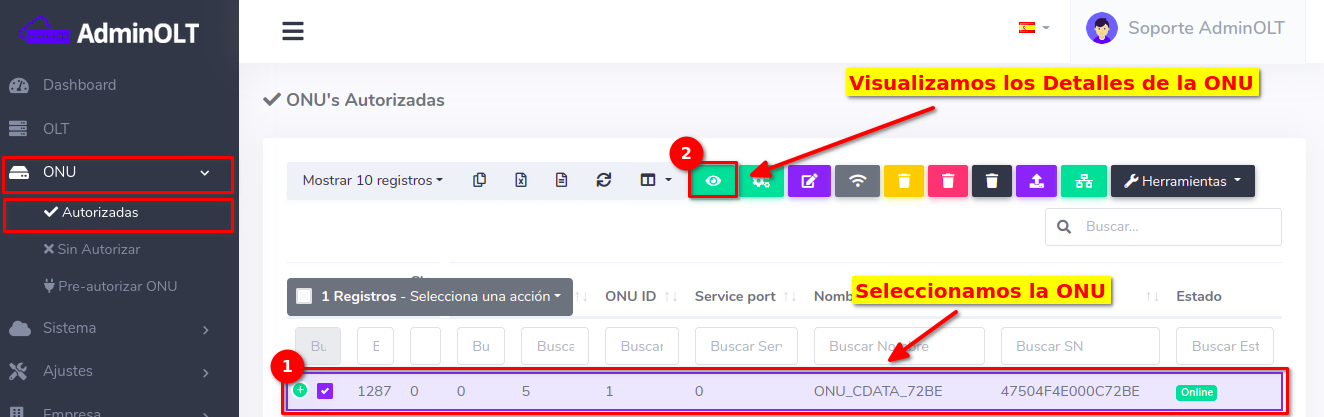

1 Go to ONU > Authorized ONU List and select the ONU you will work with.

 Information

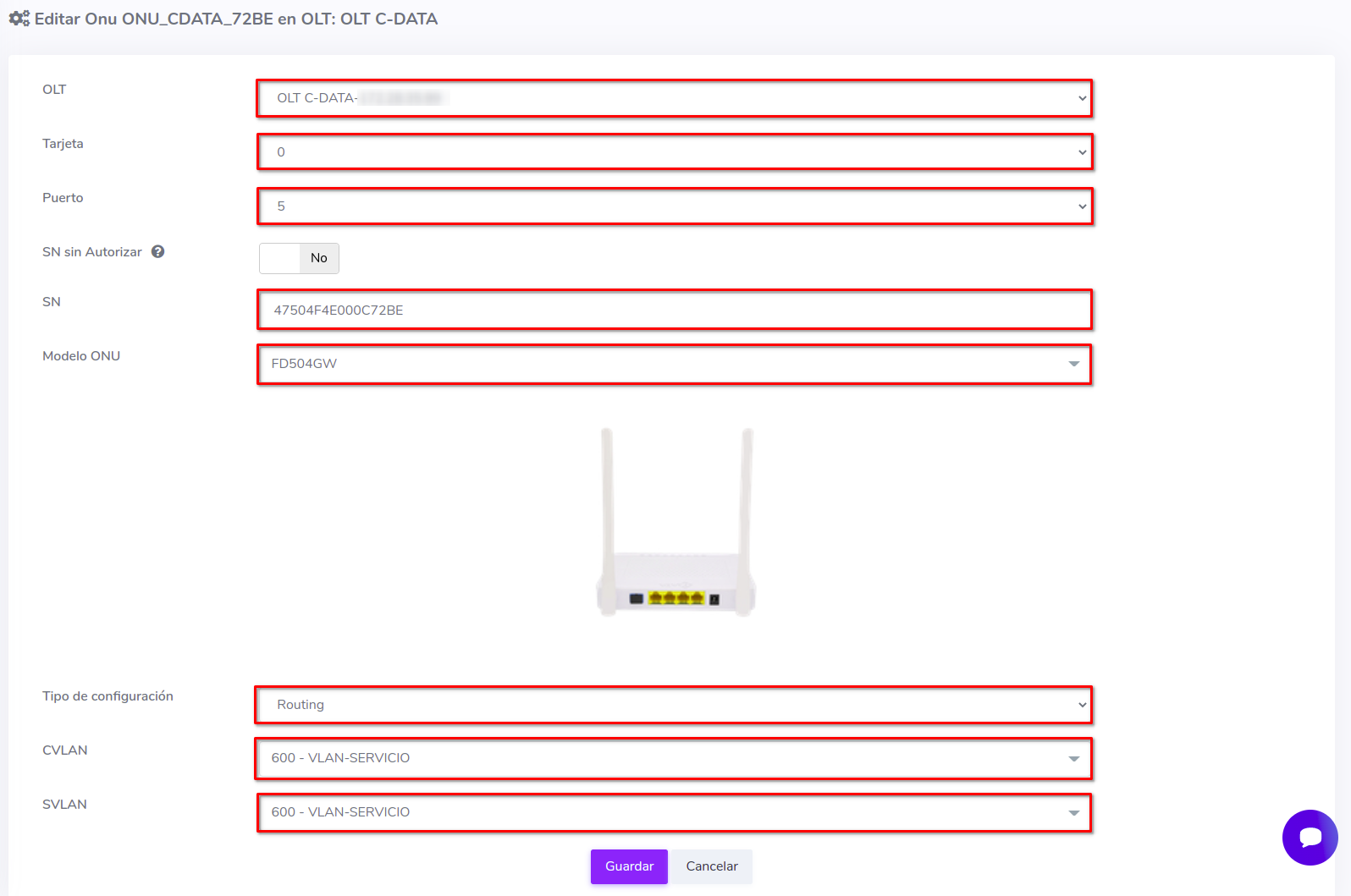

This action will take us to the following form

From ONU Details

1 Go to ONU > Authorized ONU List and select the ONU you will work with.

Click on the text Edit in OLT that is located on the button labeled Edit.

 Information

This action will take us to the following form

2 Edit the necessary information of the ONU

3 Verify that the changes have been applied correctly

Steps to edit information of an Authorized ONU in AdminOLT

To edit the configuration of an Authorized ONU in AdminOLT, there are 2 ways:

From Authorized ONU List

1 Go to ONU > Authorized ONU List and select the ONU you will work with.

 Information

This action will take us to the following form

From ONU Details

1 Go to ONU > Authorized ONU List and select the ONU you will work with.

Click on the text Edit in AdminOLT that is located on the button labeled Edit.

 Information

This action will take us to the following form

2 Edit the necessary information of the ONU

3 Verify that the changes have been applied correctly
