WAN IP VSOL Configuration (AdminOLT)

 Information

It may happen that in some ONU's the WAN IP is not created correctly, this happens because certain models of ONU's do not support the recommended configuration by the OLT. In case this situation occurs, AdminOLT will create the WAN IP through a different configuration (The type of service can result in TR069). Below is a table with the models tested for this update.

OLT VSOL, V2.1.3R

ONU Model STATIC DHCP PPPoE Recommended Configuration Configuration in case of failure
Huawei HG8546M Failed Failed Failed Not supported Failed
Huawei HG8326R Failed Failed Failed Not supported Failed
ZTE ZXHN F668 Successful Successful Failed Not supported Supported
Wolck WK-3800CW Successful Successful Successful Supported ------------------------------
CDATA FD702XW-X-R410 Successful Successful Failed Not supported Supported



AdminOLT has integrated a feature to add WAN IP configurations more quickly and efficiently. By reducing time and effort, through the following steps you can find out how to configure your WAN IPs and add them to the AdminOLT system.

Questions

Where to create WAN IP configurations in AdminOLT?

Steps to create Wan IP from authorized Onu's.

1Go to the section of ONU > Authorized and select the ONU you want to work with then check the Onu Details.

 Information

For this process, it is recommended that the ONU you are working with is reset and authorized in AdminOLT. If you have doubts about how to do this last action you can follow the instructions in the Authorize ONU manual.

2 Go to the section Tools > WAN IP.

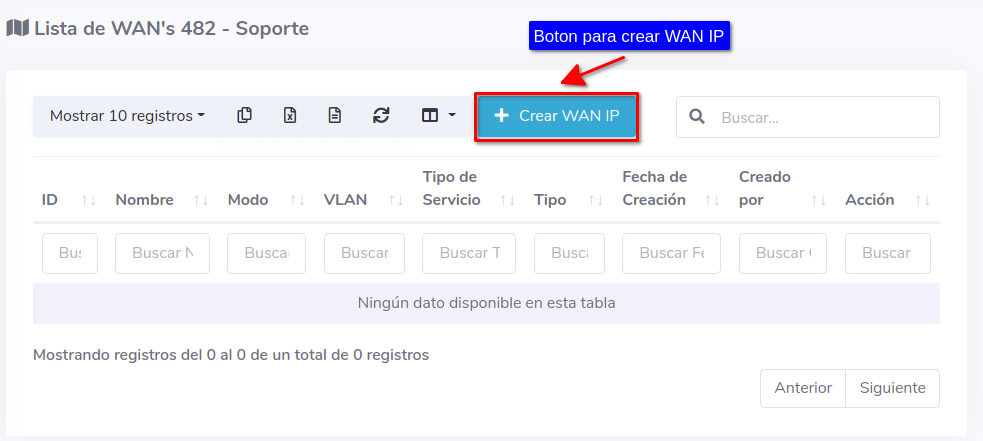

3 WAN IP configurations list.

There are 3 types of Wan that you can create which you can find in the following sections.

Steps to create Wan IP from unauthorized Onu's.

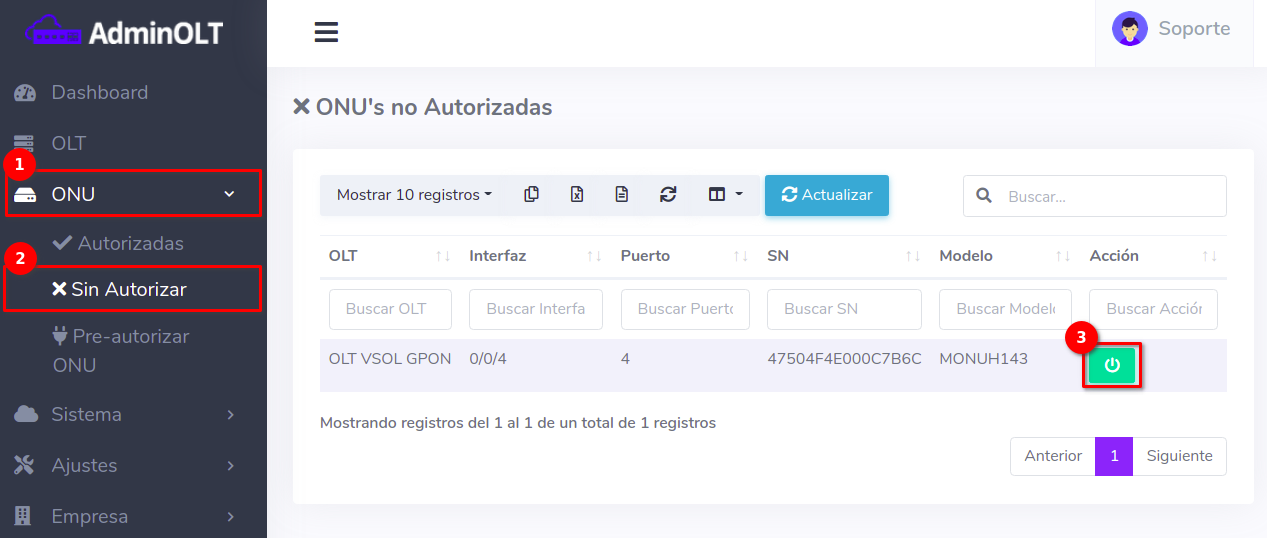

1 Go to ONU > Unauthorized and select the ONU you will work with.

2 Select the option Create WAN IP and complete the form, with this process you will authorize and create a WAN IP for an ONU at the same time.

 Information

The fields Type, Connection Name, VLAN, Service Type, and Priority will always be present when creating WAN IP configurations of any type.

 ONU Interface

We remind you that if you want to check the WAN IP configuration directly in the ONU's interfaces, you must connect to their networks to access the interface either through Ethernet or WIFI.

How to create a STATIC type WAN IP configuration?

1 Fill out the form.

  • 1.-Type: In AdminOLT, you can create WAN IP configurations of types STATIC, DHCP, PPPoE. In this example, we will create a STATIC WAN IP.
  • 2.-Connection Name: Enter a name of your preference for your configuration.
  • 3.-Associate Ports: Associate the ONU's LAN ports.
  • 4.-Associate SSID: Associate the ONU's SSIDs.
  • 5.-Enable HTTP Port: Currently not functional.
  • 6.-VLAN: Select an option from a set of available VLANs.
  • 7.-Priority: Define the priority you assign to your WAN IP in a range from 1 to 7
  • 8.-WAN Mode: The WAN mode can be ROUTE or BRIDGE.
  • 9.-Service Type: The service type will be INTERNET.
  • 10-IP Address: Enter the IP address.
  • 11.-Subnet Mask: Enter the subnet mask.
  • 12.-Gateway: Enter the gateway.
  • 13.-Primary DNS: Enter the primary DNS.
  • 14.-Secondary DNS: Enter the secondary DNS.

Upon entering the ONU interface, you will see that the WAN configuration has been created.

How to create a DHCP type WAN IP configuration?

 DHCP Server

It is necessary to have a DHCP server ready. In this example, we will use a server on a MikroTik device.

1 Fill out the form.

  • 1.-Type: In AdminOLT, you can create WAN IP configurations of types STATIC, DHCP, PPPoE. In this example, we will create a DHCP WAN IP.
  • 2.-Connection Name: Enter a name of your preference for your configuration.
  • 3.-Associate Ports: Associate the ONU's LAN ports.
  • 4.-Associate SSID: Associate the ONU's SSIDs.
  • 5.-Enable HTTP Port: Currently not functional.
  • 6.-VLAN: Select an option from a set of available VLANs.
  • 7.-Priority: Define the priority you assign to your WAN IP in a range from 1 to 7
  • 8.-WAN Mode: The WAN mode can be ROUTE or BRIDGE.
  • 9.-Service Type: The service type will be INTERNET.

Upon entering the ONU interface, you will see that the WAN configuration has been created.

How to create a PPPoE type WAN IP configuration?

 PPPoE Server

It is necessary to have a PPPoE server ready along with its username. In this example, we will use a server on a MikroTik device.

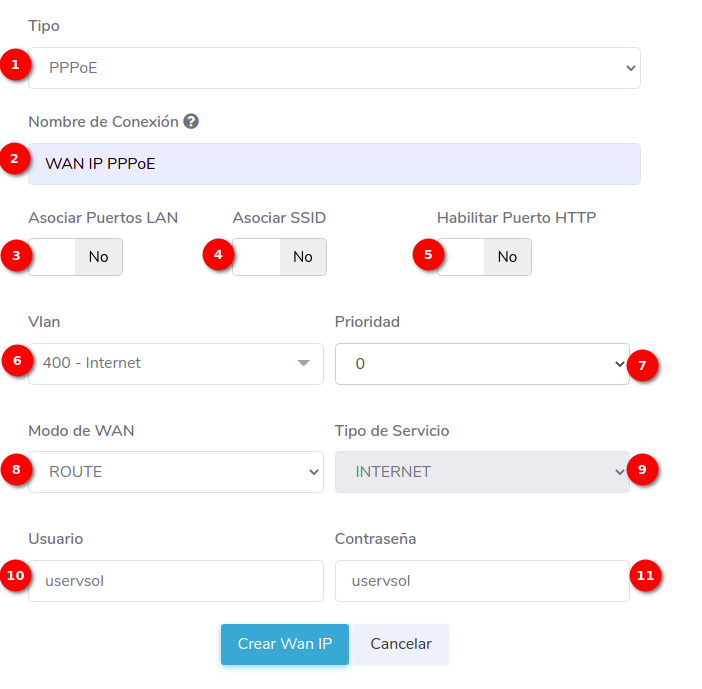

1 Fill out the form.

  • 1.-Type: In AdminOLT, you can create WAN IP configurations of types STATIC, DHCP, PPPoE. In this example, we will create a DHCP WAN IP.
  • 2.-Connection Name: Enter a name of your preference for your configuration.
  • 3.-Associate Ports: Associate the ONU's LAN ports.
  • 4.-Associate SSID: Associate the ONU's SSIDs.
  • 5.-Enable HTTP Port: Currently not functional.
  • 6.-VLAN: Select an option from a set of available VLANs.
  • 7.-Priority: Define the priority you assign to your WAN IP in a range from 1 to 7
  • 8.-WAN Mode: The WAN mode can be ROUTE or BRIDGE.
  • 9.-Service Type: The service type will be INTERNET.
  • 10.-User: Enter the user of your PPPoE server.
  • 11.-Password: Enter the password for your PPPoE server.

In the ONU interface we can see that the WAN configuration has been created.

How to edit a WAN IP configuration?

1Go to the ONU WAN IP List.

Then modify the information as appropriate.

¿How to delete a WAN IP configuration?

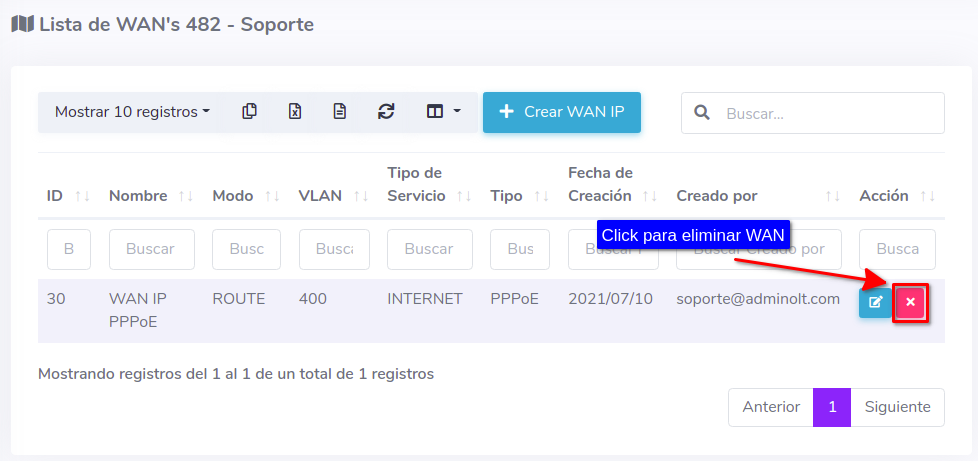

1Go to the ONU WAN IP List.

To confirm the action press the button with the legend Yes, I'm sure.

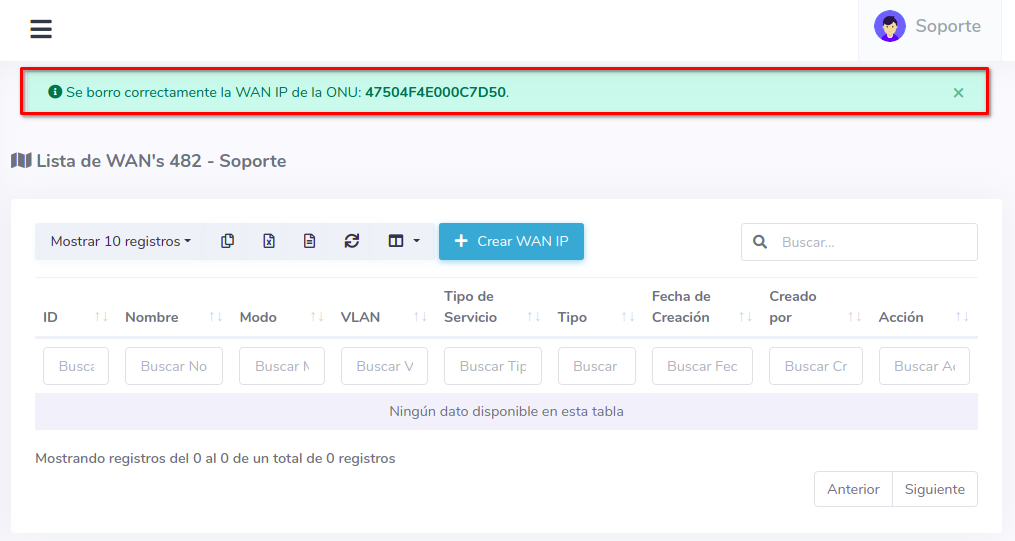

Doing this clears the configuration from the ONU and the AdminOLT system.
