TP-Link WAN IP Configuration (AdminOLT)

 Information

In some ONUs, the WAN IP may not be properly created due to certain ONU models not supporting the configuration recommended by the OLT. If this situation occurs, the service type may result in TR069. Below is a table with the tested models for this update.

OLT TP-Link, V1.0.0

ONU Model STATIC DHCP PPPoE
TP-Link XN020-G3v Successful Successful Failed
Wolck WK-3800CW Successful Successful Failed
Huawei HG8546M Failed Failed Failed
ZTE ZXHN F668 Successful Successful Failed
CDATA FD702XW-X-R410 Successful Successful Failed

AdminOLT has integrated a feature to add WAN IP configurations more quickly and efficiently. By following the steps below, you can find out how to configure your WAN IP and add them to the AdminOLT system.

Questions

¿Where to create WAN IP configurations in AdminOLT?

Steps to create Wan IP from Authorized Onus.

1Go to the section of ONU > Authorized and select the ONU you want to work with, then check the Onu Details.

 Information

For this process, it is recommended that the ONU you are working with is reset and authorized in AdminOLT. If you have any doubts about how to do this last action, you can follow the instructions in the guide Authorize ONU.

2 Go to the section Tools > WAN IP.

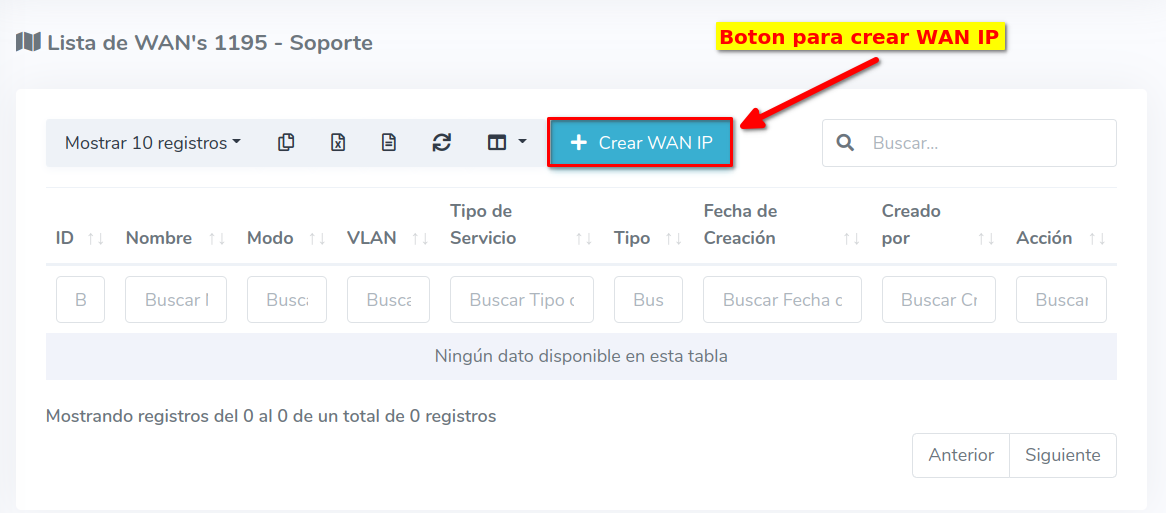

3 List of WAN IP configurations.

There are 3 types of WAN that can be created, which can be found in the following sections.

Steps to create Wan IP from Unauthorized Onus.

1Go to ONU > Unauthorized and select the ONU you will be working with.

2Select the option Create WAN IP and fill out the form, with this process you can authorize and create a WAN IP for an ONU at the same time.

 Information

The fields Type, Connection Name, VLAN, Service Type, and Priority will always be present when creating WAN IP configurations of any type.

 ONU Interface

We remind you that if you want to directly check the WAN IP configuration in the ONU interfaces, you must connect to their networks to access the interface, either through Ethernet or WIFI connection.

¿How to create a STATIC type WAN IP configuration?

1 Fill out the form.

  • 1.-Type: In AdminOLT, you can create STATIC and DHCP type WAN IP configurations. In this example, we will create a STATIC WAN IP.
  • 2.-Connection Name: Enter a name of your choice for your configuration.
  • 3.-Associate Ports: Associate the LAN ports of the ONU.
  • 4.-Associate SSID: Associate the SSIDs of the ONU.
  • 5.-Enable HTTP Port: No function at the moment.
  • 6.-VLAN: Select an option from a set of available VLANs.
  • 7.-Priority: Define the priority you will assign to your WAN IP in a range from 1 to 7
  • 8.-WAN Mode: The WAN mode can be ROUTE or BRIDGE.
  • 9.-Service Type: The service type will be INTERNET.
  • 10-IP Address: Enter the IP address.
  • 11.-Subnet Mask: Enter the subnet mask.
  • 12.-Gateway: Enter the gateway.
  • 13.-Primary DNS: Enter the primary DNS.
  • 14.-Secondary DNS: Enter the secondary DNS.

Upon entering the ONU interface, you will see that the WAN configuration has been generated.

¿How to create a DHCP type WAN IP configuration?

 DHCP Server

It is necessary to have a DHCP server ready. In this example, we will use a server on a MikroTik device.

1 Fill out the form.

  • 1.-Type: In AdminOLT, you can create STATIC and DHCP type WAN IP configurations. In this example, we will create a DHCP WAN IP.
  • 2.-Connection Name: Enter a name of your choice for your configuration.
  • 3.-Associate Ports: Associate the LAN ports of the ONU.
  • 4.-Associate SSID: Associate the SSIDs of the ONU.
  • 5.-Enable HTTP Port: No function at the moment.
  • 6.-VLAN: Select an option from a set of available VLANs.
  • 7.-Priority: Define the priority you will assign to your WAN IP in a range from 1 to 7
  • 8.-WAN Mode: The WAN mode can be ROUTE or BRIDGE.
  • 9.-Service Type: The service type will be INTERNET.

Upon entering the ONU interface, you will see that the WAN configuration has been generated.

¿How to edit a WAN IP configuration?

1Go to the WAN IP List of the ONU.

Then, edit the information as needed.

¿How to delete a WAN IP configuration?

1Go to the WAN IP List of the ONU.

To confirm the action, press the button that says Yes, I'm sure.

By doing this, the configuration will be deleted from the ONU and the AdminOLT system.
